Flow Matching
Flow matching explained and implemented
Hello all, today I will cover flow matching. Flow matching is a (somewhat) novel technique to image generation, that seems to outperform all existing techniques. It is the backbone of many modern models like Stable Diffusion 3. So we will start off with the beloved Literature Review, and look through existing technique. Full code is available here
Literature Review
So in the existing pools of techniques, we have these:
| VAE | GAN | VAE-GAN | Diffusion | Flow matching | |
|---|---|---|---|---|---|
| Training | Decent speed, albeit a bit wasteful - oftentimes the encoder is thrown away | Painful. Model collapse happens reasonably often. | Model collapse quite unlikely, but again, you throw away encoder and discriminator usually. | Pretty decent speeds, but there are many ways to screw up due to high amounts of math | Very good, trains very fast, and simple to implement |
| Inference speed | Good - single pass | Good | Good | Poor - often needs many passes to generate decent quality | Mid - Faster than diffusion, slower than single pass models |
| Quality | Trash - images are often blurry | Good | Good, but blurrier than pure GAN | Very good | Very good |
Overall, flow matching is a pretty good balance between speed, quality, and inference time. However, due to the high amounts of attention diffusion and flow matching models tend to use in the U-net, the models may require unwieldly amounts of VRAM and train time if we try to make the images any bigger than 128x128 or so. This is why latent diffusion (which can be trivially extended to flow matching) was invented, but we will not cover that today as we will just be working with the 28x28 Fashion MNIST dataset.
Math
I shall now cover the math of the flow matching techniques. I will casually ignore all the fancy probability and integrals used in the official paper (because admittedly I can’t understand a good chunk of it too), and use the simplest interpretation instead - the linear interpolation interpretation.
Let us start off by defining some terms. Let $x$ be the image, and $z$ be random noise. We start off at complete random noise at $t = 0$. Then all we need to do is draw a line (ie linearly interpolate) between $z$ and $x$, from $t = 0$ to $t = 1$. We will represent the model as $f$.
\[\displaylines{ x_{t} = xt + (1-t)z\\ \frac{dx_{t}}{dt} = x - z\\ f(x_{t}, t) = \frac{dx_{t}}{dt} = x - z }\]As such, all we have to do is train the model to find $x - z$, given $x_{t}$ and $t$.
Architecture
We will design the model in a classical U-net format, but after each of the convolution blocks, we introduce a self-attention. You can probably skip this whole section if you have implemented a diffusion model before.

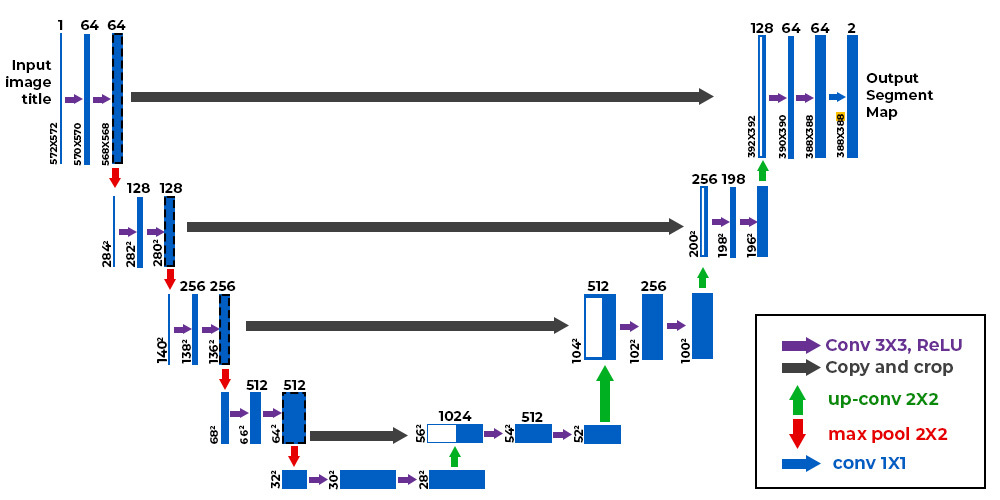

Note this picture is just to give a rough idea of what a U-net looks like, we will implement something rather different
Time embedding
First we need to settle the time embedding, this we inject into every layer. Let $t$ be the time we want to obtain, $d$ be half the embedding dimension, and $x$ be the embedding.
\[x_{i} = sin(\frac{t}{10000^{\frac{i}{d}}})\]We take this equation but cos instead of sin, and concat it, to form the entire embedding. Here it is in code:
1
2
3
4
5
6
7
def get_time_embedding(time_steps, temb_dim):
factor = 10000 ** ((torch.arange(
start=0, end=temb_dim // 2, dtype=torch.float32, device=time_steps.device) / (temb_dim // 2))
)
t_emb = time_steps[:, None].repeat(1, temb_dim // 2) / factor
t_emb = torch.cat([torch.sin(t_emb), torch.cos(t_emb)], dim=-1)
return t_emb
Downsample
I will skip a lot of the code for brevity, you can find the full thing here
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
class DownBlock(nn.Module):
def __init__(self, in_channels, out_channels, t_emb_dim, num_heads=4, down_sample = True, attend = True):
super().__init__()
...
self.resnet_conv_first = nn.Sequential(
nn.GroupNorm(8, in_channels),
nn.SiLU(),
nn.Conv2d(in_channels, out_channels,
kernel_size=3, stride=1, padding=1),
)
self.t_emb_layers = nn.Sequential(
nn.SiLU(),
nn.Linear(t_emb_dim, out_channels)
)
self.resnet_conv_second = ...
if attend:
self.attention_norms = nn.GroupNorm(8, out_channels)
self.attentions = nn.MultiheadAttention(out_channels, num_heads, batch_first=True)
self.residual_input_conv = nn.Conv2d(in_channels, out_channels, kernel_size=1)
self.down_sample_conv = nn.Conv2d(out_channels, out_channels,
4, 2, 1) if self.down_sample else nn.Identity()
And the forward code,
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
def forward(self, x, t_emb):
out = x
resnet_input = out
out = self.resnet_conv_first(out)
out = out + self.t_emb_layers(t_emb)[:, :, None, None]
out = self.resnet_conv_second(out)
out = out + self.residual_input_conv(resnet_input)
if self.attend:
batch_size, channels, h, w = out.shape
in_attn = out.reshape(batch_size, channels, h * w)
in_attn = self.attention_norms(in_attn)
in_attn = in_attn.transpose(1, 2)
out_attn, _ = self.attentions(in_attn, in_attn, in_attn)
out_attn = out_attn.transpose(1, 2).reshape(batch_size, channels, h, w)
out = out + out_attn
out = self.down_sample_conv(out)
return out
Note how we inject the time embedding in between the conv layers. We do this for every layer later as well. Another key thing to note is only downsample AFTER you do everything. And do the reverse for the upsampling portion later in the up block. Otherwise you’ll just get a total mess of an output. Not too sure how related, but do check out this article.
Middle block
I will skip the initialization code, it’s just the same as that of the downsampler. For this block, instead of resnet -> attention, we do resnet -> attention -> resnet.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
def forward(self, x, t_emb):
out = x
resnet_input = out
out = self.resnet_convs[0](out)
out = out + self.t_emb_layers[0](t_emb)[:, :, None, None]
out = self.resnet_convs[1](out)
out = out + self.residual_input_conv[0](resnet_input)
batch_size, channels, h, w = out.shape
in_attn = out.reshape(batch_size, channels, h * w)
in_attn = self.attention_norms(in_attn)
in_attn = in_attn.transpose(1, 2)
out_attn, _ = self.attentions(in_attn, in_attn, in_attn)
out_attn = out_attn.transpose(1, 2).reshape(batch_size, channels, h, w)
out = out + out_attn
resnet_input = out
out = self.resnet_convs[2](out)
out = out + self.t_emb_layers[1](t_emb)[:, :, None, None]
out = self.resnet_convs[3](out)
out = out + self.residual_input_conv[1](resnet_input)
return out
Upsample
Now for the upsample,
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
class UpBlock(nn.Module):
def __init__(self, in_channels, out_channels, t_emb_dim, up_sample=True, num_heads=4, attend = True):
super().__init__()
...
self.up_sample_conv = nn.ConvTranspose2d(in_channels // 2, in_channels // 2,
4, 2, 1) \
if self.up_sample else nn.Identity()
def forward(self, x, out_down, t_emb):
x = self.up_sample_conv(x)
x = torch.cat([x, out_down], dim=1)
out = x
resnet_input = out
out = self.resnet_conv_first(out)
out = out + self.t_emb_layers(t_emb)[:, :, None, None]
out = self.resnet_conv_second(out)
out = out + self.residual_input_conv(resnet_input)
if self.attend:
batch_size, channels, h, w = out.shape
in_attn = out.reshape(batch_size, channels, h * w)
in_attn = self.attention_norms(in_attn)
in_attn = in_attn.transpose(1, 2)
out_attn, _ = self.attentions(in_attn, in_attn, in_attn)
out_attn = out_attn.transpose(1, 2).reshape(batch_size, channels, h, w)
out = out + out_attn
return out
As you will note, we first upsample with ConvTranspose2d, then we concat with the respective downsample block, for the U-net residuals. We do this in the channel dimensions.
U-net
Now we piece them all together.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
class Unet(nn.Module):
def __init__(self, im_channels, down_channels, mid_channels, t_emb_dim, down_sample, attend):
super().__init__()
self.down_channels = down_channels
self.mid_channels = mid_channels
self.t_emb_dim = t_emb_dim
self.down_sample = down_sample
self.t_proj = nn.Sequential(
nn.Linear(self.t_emb_dim, self.t_emb_dim),
nn.SiLU(),
nn.Linear(self.t_emb_dim, self.t_emb_dim)
)
self.up_sample = list(reversed(self.down_sample))
...
self.norm_out = nn.GroupNorm(8, 16)
self.conv_out = nn.Conv2d(16, im_channels, kernel_size=3, padding=1)
def forward(self, x, t):
out = self.conv_in(x)
t_emb = get_time_embedding(t, self.t_emb_dim)
t_emb = self.t_proj(t_emb)
down_outs = []
for idx, down in enumerate(self.downs):
down_outs.append(out)
out = down(out, t_emb)
for mid in self.mids:
out = mid(out, t_emb)
for up in self.ups:
down_out = down_outs.pop()
out = up(out, down_out, t_emb)
out = self.norm_out(out)
out = nn.SiLU()(out)
out = self.conv_out(out)
return out
And just like that, we have implemented our model! Finally, let us do some trainings
Training
We prepare the dataset, we will use Fashion MNIST,
1
2
3
4
5
6
7
8
9
10
11
dataset_dir = "datasets/"
transforms_fmnist = transforms.Compose([transforms.ToTensor()])
train_dataset = FashionMNIST(root=dataset_dir,
train=True,
download=True,
transform=transforms_fmnist)
BATCH_SIZE = 256
train_dataloader = DataLoader(dataset=train_dataset,
batch_size=BATCH_SIZE,
shuffle=True)
Prepare the model,
1
2
3
4
5
6
7
8
9
10
11
12
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
model = Unet(im_channels = 1,
down_channels = [32, 64, 128],
mid_channels = [128, 64],
t_emb_dim = 128,
down_sample = [True, True],
attend = [False, True]).to(device)
model.train()
num_epochs = 10
optimizer = Adam(model.parameters(), lr=1e-3)
criterion = torch.nn.MSELoss()
Finally, train it
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
model.train()
for epoch_idx in range(num_epochs):
losses = []
for im, _ in tqdm(train_dataloader):
optimizer.zero_grad()
im = im.float().to(device)
im = (2 * im) - 1
t = torch.rand((im.shape[0])).to(device)
noise = torch.randn_like(im).to(device)
noisy_im = im * t[:, None, None, None] + (1 - t)[:, None, None, None] * noise
v_pred = model(noisy_im, t)
loss = criterion(v_pred, im - noise)
losses.append(loss.item())
loss.backward()
optimizer.step()
print('Finished epoch:{} | Loss : {:.4f}'.format(
epoch_idx + 1,
np.mean(losses),
))
Note how as mentioned, we are training the model to find $x - z$, given $x_{t}$ and $t$.
As for inference, we will just use simple Euler methods to solve the ODE represented with $\frac{dx_{t}}{dt}$, to find $x$ given completely random noise.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
n_step = 100
model.eval()
xt = torch.randn((128, 1, 28, 28)).to(device)
with torch.no_grad():
for i in tqdm(range(n_step)):
velo = model(xt, torch.as_tensor(i / n_step).unsqueeze(0).to(device))
xt = xt + velo / n_step
ims = torch.clamp(xt, -1., 1.).detach().cpu()
ims = (ims + 1) / 2
grid = make_grid(ims, nrow=16)
img = torchvision.transforms.ToPILImage()(grid)
img.save('out.png')
img.close()
model.train()
And that’s it! We now have implemented and trained a flow matching model on Fashion MNIST! Once again, full code is available here

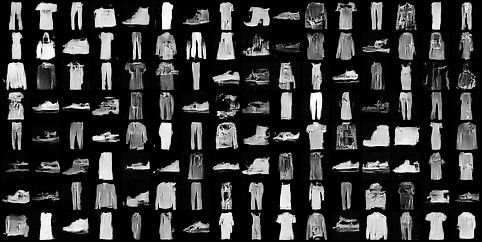

Here is some sample output of the model, trained for ~4 mins on a P100 GPU, 5 epochs:
References
- https://github.com/explainingai-code/DDPM-Pytorch/ - A large majority of the code showcased is edited from here
- https://arxiv.org/abs/2210.02747 - The original flow matching paper
